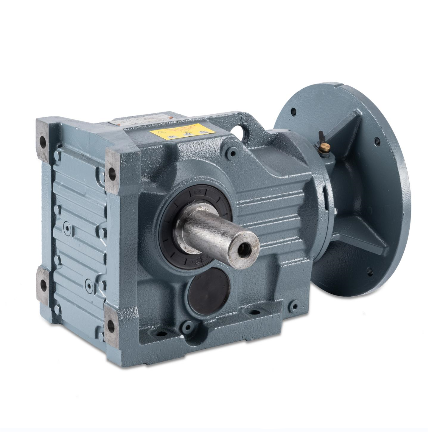

Introduction to K-series gearbox

Release Time：

2024-10-12

K series reducers are widely used in the transmission fields of light industry machinery such as metallurgy and mining, petrochemicals, building materials machinery, railway vehicles, port ships, textile printing and dyeing, food packaging, paper printing, lifting and transportation, logistics loading and unloading, agricultural, animal husbandry and fishery machinery, light industry leather, etc.

How much do you know about gear reducers? Many people express that they are not very clear about the performance characteristics of gear reducers. Below, we will briefly introduce the K series of gear reducers from the following aspects.

1、 Basic parameters

Transmission speed ratio: 3.83~229.71

Protection level: ≥ IP58

Allowable torque: 50000N. m

Input power: 0.12-200kW

Gearbox specification numbers: 37, 47, 57, 67, 77, 87, 97, 107, 127, 157, 167187

2、 Performance characteristics

1. The K series helical gear bevel gear reducer is manufactured in accordance with international technical requirements, with high technological content;

2. Space saving, reliable and durable, high load-bearing capacity, with a power output of over 200KW;

3. Low energy consumption, good performance, reducer efficiency of over 95%;

4. K spiral bevel gear reducer has low vibration, low noise, and high energy saving;

5. The use of 20CrMnTi section steel material, steel cast iron box, and gear surface can achieve a surface hardness of 58-62HRC after high-frequency heat treatment. After gear grinding processing, the accuracy can reach 5-6, with high precision, stable transmission, small size, large bearing capacity, and long service life;

6. After precision machining, reducers driven by helical gears, bevel gears, and bevel gears can be equipped with various motors, ensuring the quality of use of the reducer motor products.

3、 Scope of use
