Common gearbox classifications and characteristics that mechanical engineers must understand!
Common gearbox classifications and characteristics that mechanical engineers must understand!

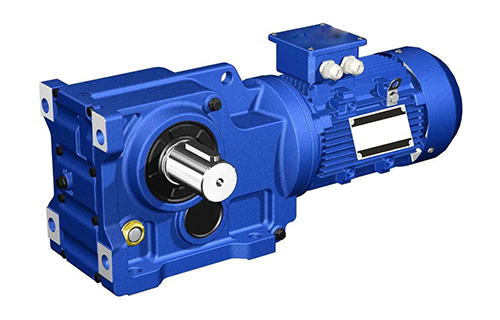

gear reducer
Types: Cylindrical gear reducer, bevel gear reducer, helical gear reducer, etc.
characteristic:
High transmission efficiency (90% -98%), suitable for high-power scenarios.
Strong load-bearing capacity, suitable for heavy-duty industrial equipment such as mining machinery and metallurgical equipment.
Compact structure, but some types (such as spur gears) have high noise levels.
Transmission ratio range: Single stage transmission ratio is usually ≤ 5, and multi-stage combination can reach even higher.
planetary reducer
Structure: Composed of sun gear, planetary gear, and internal gear ring.
characteristic:
High precision (small backlash), suitable for precision machinery such as robot joints and CNC machine tools.
Small size, high power density, and better load-bearing capacity than ordinary gear reducers under the same volume.
The transmission ratio range is wide (3-1000), and multi-stage series connection can be expanded.
High cost and complex manufacturing process.
worm gear reducer
Structure: Worm (spiral) drives worm gear (gear).
characteristic:
Single stage transmission ratio is large (10-100), and the structure is compact.
Self locking function (difficult reverse transmission), suitable for scenarios with high safety requirements (such as elevators).
Low transmission efficiency (40-85%) and high heat generation.
Medium carrying capacity, suitable for small and medium power equipment.
Cycloid pinwheel reducer (RV reducer)
Structure: Based on the principle of cycloidal pinwheel meshing.
characteristic:
High rigidity, high precision, small backlash (≤ 1 arc minute).
Strong impact resistance, suitable for industrial robots and precision turntables.
The transmission ratio range is wide (30-300) and the efficiency is high (80% -90%).
High cost and difficult manufacturing.
