Is the design of servo motor application tooling reasonable

Is the design of servo motor application tooling reasonable

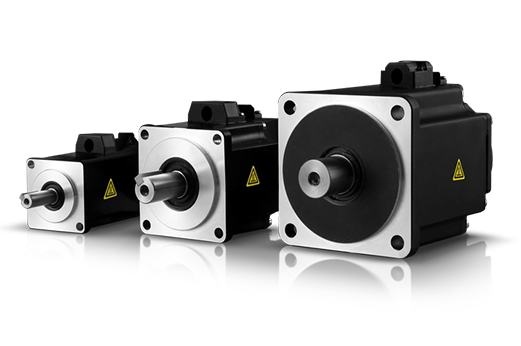

The torque mode of the servo motor outputs stable torque (the ball screw outputs a stable force value), and different thrust outputs are used for tooling testing. Install a shovel on the ball screw, and control the shovel's impact on the plane up and down. When the set force value is reached, the driver outputs a torque arrival signal.

1、 Design process
requirement analysis

Application scenarios: positioning, assembly, testing, handling, processing, etc.

Load parameters: The torque, weight, and inertia that the fixture needs to carry (matching the rated torque and inertia ratio of the servo motor).

Sports requirements: speed, acceleration, repeat positioning accuracy (commonly ± 0.01mm~± 0.1mm).

Environmental factors: temperature, humidity, vibration, dust (affecting sealing and heat dissipation design).

Mechanical structure design

Material selection:

Lightweight and high rigidity materials: aluminum alloy (such as 6061-T6), carbon fiber (high-frequency dynamic load).

High load scenario: Steel or cast iron (considering weight and inertia balance).

Transmission mechanism:

Synchronous belt/gear: suitable for high speed and low load.

Ball screw: high-precision linear motion (C3/C5 level accuracy).

Harmonic reducer/planetary reducer: high torque output (reduces the impact of motor inertia).

Installation interface:

Matching of servo motor flange with tooling (such as IEC/ISO standard flange).

Coupling selection (diaphragm coupling anti eccentricity, suitable for high-precision scenarios).

Integration of Electrical and Control Systems

Encoder feedback: Multi turn value encoder (to avoid loss of power-off position).

Driver parameters: Adjust PID parameters to match fixture inertia (to avoid overshoot or oscillation).

Safety protection: overload protection, limit switch, emergency stop circuit (compliant with IEC 60204 standard).

Simulation and Verification

Dynamic simulation: Use ADAMS or Simulink to verify the smoothness of motion.

Finite Element Analysis (FEA): Check the stress and deformation of the fixture under high loads (such as ANSYS).

2、 Key design points
inertia matching

The recommended ratio of the inertia of the servo motor rotor (JmJm) to the inertia of the load (JLJL) is 1:1 to 1:10, as excessive values can lead to delayed response.

Formula: JL=J_ {\ text {tooling}}+J_ {\ text {load}} JL=J_ tooling+J_ load.

Rigid optimization

The natural frequency of the structure needs to be much higher than the operating frequency of the servo system (to avoid resonance).

Strengthening reinforcement design or topology optimization (such as using Altair OptiStruct).

thermal management

During long-term operation, the motor and driver require heat dissipation design (air-cooled/water-cooled).

The temperature rise should be controlled within Δ T<40 ℃ (to avoid material expansion affecting accuracy).

error control

Backclearance elimination: Pre tightening force adjustment (such as ball screw double nut pre tightening).

Installation reference surface machining accuracy (flatness ≤ 0.02mm).

3、 Typical application cases
Automated assembly line

Tool function: Multi axis collaborative grasping of precision parts.

Design focus: Lightweight end effector (carbon fiber)+visual correction system.

CNC machine tool fixture

Tool function: high-speed rotating tool positioning.

Design focus: Dynamic balance correction (ISO 1940 G2.5 level), seismic resistant structure.

Test equipment

Tool function: Simulate load to test motor performance.

Design focus: Integration of dynamic torque sensor and data acquisition system (1kHz sampling rate).
