Today, with the booming development of Industry 4.0 and intelligent robots, harmonic reduction motors have become the hidden champions in the field of precision transmission due to their core ability of "controlling large with small". How can it break through the limitations of traditional gear transmission? How will we empower the intelligent upgrading of thousands of industries?

The traditional gear transmission system has pain points such as large volume, low precision, and high noise, while the harmonic reduction motor has achieved a revolutionary breakthrough through its unique structure of "flexible wheel rigid wheel wave generator". The core principle is to transmit power through flexible deformation, with a reduction ratio of 30:1 to 100:1 and an accuracy error controlled within 1 arc minute, which is more than 10 times higher than traditional gear accuracy. This "combination of rigidity and flexibility" design allows the equipment to output high torque even in a compact space.

In the industrial field, harmonic reduction motors have become a standard configuration for six axis robotic arm joints. Its zero backlash characteristic ensures millimeter level repetitive positioning accuracy for welding, spraying, and other processes, while its maintenance free lifespan of 500000 hours significantly reduces equipment downtime costs. What is even more remarkable is that the Xintuo Mini series has successfully opened up the incremental market for high-end medical equipment such as medical surgical robots and intelligent prosthetics through miniaturized design (with a small diameter of only 20mm).

The service robot market has higher requirements for silent operation. The unique surface contact meshing method of harmonic drive can control the operating noise below 45 decibels compared to the point contact of traditional gears. This enables food delivery robots and navigation robots equipped with harmonic reduction motors to work smoothly in quiet scenes such as hotels and hospitals, achieving a qualitative leap in human-machine collaboration experience.

According to industry data, Chinese harmonic reducer manufacturers have occupied four of the top six in the world. Harmonic reduction motor, as an advanced power transmission solution, plays an increasingly important role in modern industry due to its unique working principle and significant performance advantages. With the continuous advancement of technology, we have reason to believe that harmonic reduction motors will continue to be the trend in future development, bringing more efficient and intelligent power solutions to various industries.

The localization process not only reflects performance catch-up, but also includes cost optimization. Through innovation

Lightweight materials:
Carbon fiber flexible wheels and ceramic coating technology enhance lifespan and fatigue resistance.

Integrated design:
Integrate with the motor (such as motor module) to simplify the installation process.

Intelligent monitoring:
Built in sensors monitor temperature rise and vibration to achieve predictive maintenance.

Domestic substitution acceleration:
Chinese manufacturers break through barriers, cost reduction drives popularization (such as green harmonics)

Key parameters:
Reduction ratio, rated torque (continuous/peak), backlash (backlash), inertia matching, input speed limit.

Selection suggestion:

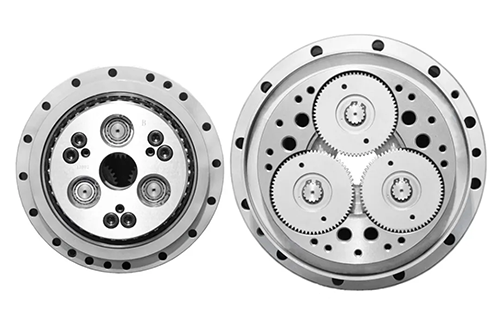

Comprehensive evaluation based on load type (constant/impact), accuracy requirements, and installation space. For example, collaborative robots prioritize harmonics, and heavy-duty industrial arms can choose RV.
