From the millimeter level motion of robotic arms to the thousand ton level load-bearing capacity of wind turbine blades, planetary reducers are composing an epic of intelligent manufacturing in China through precise gear symphony. This technology, which embodies materials science, precision manufacturing, and intelligent control, is not only the cornerstone of Industry 4.0, but also a strategic highland for the localization of high-end equipment.

Planetary reducer: the "precision heart" of industrial transmission and future inno
In the movements of industrial robots, in the moments of precise adjustment of wind turbine blades, and even on the robotic arm of a Mars rover, there is a set of precision gear mechanisms - planetary reducers. It transforms the "crazy speed" of the motor into the "steady power" of the equipment through the tacit cooperation between the planetary gear and the sun gear, and can be called the "heart" of industrial transmission. By 2025, the global market size of planetary gearboxes has exceeded 20 billion US dollars, and the market share of Chinese enterprises has jumped from less than 10% ten years ago to 35%. This "Chinese breakthrough" in the precision transmission field is rewriting the global industrial landscape.

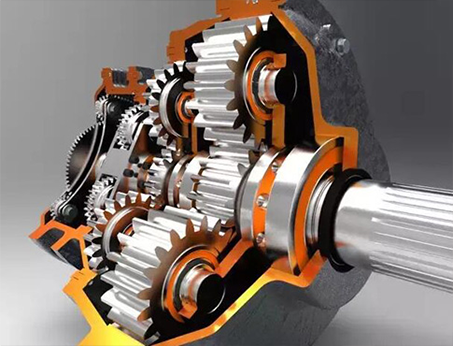

Core Structure: Mechanics Symphony of Quartet

The core of a planetary gearbox consists of four parts, forming a closed-loop system for precision transmission:

1. Sun Gear

Located in the center, connected to the input shaft, it is the "origin point" of power, usually made of 20CrMnTi carburizing steel with a hardness of HRC60-62;

2. Planet Gears

3-4 planetary gears are evenly distributed around the sun gear, like planets orbiting around a star. Through multi tooth meshing, the load is dispersed and the load-bearing capacity is increased by 30%;

3. Planetary Carrier

Connect the planetary gears and output power, using ductile iron QT500-7 casting, with a 50% increase in deformation resistance compared to traditional structures;

4. Ring Gear

A precision internal gear fixed on the inner wall of the housing, meshing with the planetary gear, using wire cutting technology, with a tooth profile error of ≤ 5 μ m.

Working principle: The solar system in the mechanical world

When the motor drives the sun gear to rotate, the planetary gear completes power transmission in three mechanical relationships:

1. Rotation and revolution: The planetary gear revolves around both the sun gear and its own axis, forming a composite motion trajectory;

2. Reduction and Doubling: The input shaft speed is reduced in multiple stages, and the output torque can be amplified to 100 times the input (such as the GPL series reduction ratio of 100:1 for Megawatt Electromechanical);

3. Load sharing design: Multiple planetary gears synchronously mesh to evenly distribute the load, reducing the force on a single tooth by 60% and achieving a lifespan of over 30000 hours.

This process achieves precise conversion from input speed of 3000rpm to output speed of 30rpm, while maintaining an ultra-high transmission efficiency of 97% and reducing energy consumption by 40% compared to worm gear reducers.
