How much do you know about the advantages of right angle planetary gearboxes?

Release Time：

2025-03-15

In the field of mechanical transmission, the right angle planetary reducer is a unique and important device, also known as the angular planetary reducer. The prominent feature of this reducer is its structure where the motor input end is perpendicular to the reducer output end at a 90 degree angle.

How much do you know about the advantages of right angle planetary gearboxes?
In the field of mechanical transmission, the right angle planetary reducer is a unique and important device, also known as the angular planetary reducer. The prominent feature of this reducer is its structure where the motor input end is perpendicular to the reducer output end at a 90 degree angle.

It has demonstrated an irreplaceable role in situations where installation space is limited. In the layout of modern industrial equipment, there are often various complex spatial constraints. The right angle planetary gearbox, with its unique right angle structure, can cleverly adapt to this spatial constraint and complete power transmission and deceleration tasks in a limited space, without being unable to be installed or affecting the layout rationality of the entire equipment due to insufficient space like traditional structure gearboxes.

Secondly, the right angle planetary gearbox can be bent 90 degrees for installation, and the installation angle can achieve 360 degree changes without dead corners. Whether it is complex assembly equipment in the automotive manufacturing workshop or precision instruments in the aerospace field, this feature of being able to adjust the installation angle according to actual needs can meet the special requirements of different equipment.

It is precisely because of these advantages that right angle planetary gearboxes are widely used in many industries. In the field of industrial automation, it is a key component for various automation equipment to achieve precise motion control and power transmission; In robot manufacturing, it can provide appropriate power transmission and deceleration functions for the joints of the robot, ensuring the accuracy and flexibility of the robot's movements; In the field of CNC machine tools, right angle planetary reducers help improve the machining accuracy and efficiency of machine tools, and meet the machining needs of complex components.

However, just like everything has two sides, right angle planetary gearboxes are not without their flaws. It also has some drawbacks,

Complex structure and high maintenance cost

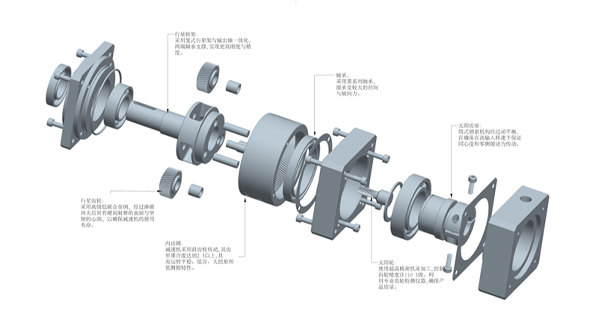

Multi component design: The precise fit between the planetary gear, sun gear, inner ring gear, and planetary carrier results in a large number of internal components and complex assembly processes.

Maintenance difficulty: In case of malfunction, the entire gearbox needs to be disassembled, and repairing or replacing components is time-consuming and labor-intensive, usually requiring professional personnel to operate.

Cost impact: Complex structures drive up manufacturing costs, especially in high-precision scenarios such as robot joints, where material and processing costs significantly increase.

thermal dissipation

Compact space restricts heat dissipation: high-density gear meshing is prone to heat accumulation at high speeds or high loads, and poor heat dissipation can lead to lubricant failure (such as grease carbonization).

Temperature rise affects lifespan: Continuous high temperatures may accelerate gear wear and even cause material deformation, requiring additional design of heat dissipation channels or forced cooling systems.
