Working principles and advantages and disadvantages of planetary gearbox, RV gearbox, and harmonic gearbox

Working principles and advantages and disadvantages of planetary gearbox, RV gearbox, and harmonic gearbox

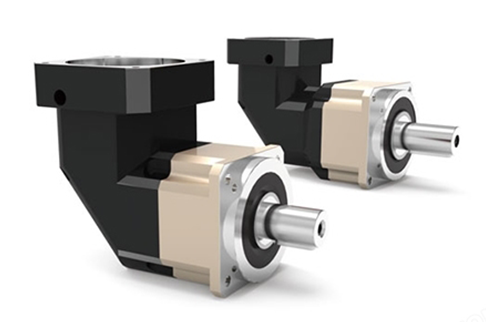

1. Planetary gearbox

principle

The planetary gearbox is like a "little sun" spinning with a group of "asteroids". It has a central gear (sun gear) surrounded by several small gears (planet gears) that rotate around the sun gear, while the planet gears also rotate around their own axes. There is a fixed ring gear (outer ring) on the outside of the planetary gear. Through this structure, the input shaft (usually the motor shaft) drives the sun gear to rotate, and the planetary gears roll between the sun gear and the ring gear, ultimately transmitting power to the output shaft to achieve deceleration.

advantage

Small size and light weight: With a compact structure, it is suitable for use in places with limited space.

High efficiency: minimal energy loss, able to transmit most of the power.

High precision: High transmission accuracy, stable output.

Strong load-bearing capacity: able to withstand large loads.

disadvantage

• High cost: The manufacturing process is complex and the price is relatively expensive.

High installation requirements: Accurate installation is necessary, otherwise it will affect performance.

2. RV gearbox

principle

RV reducer means "rotation vector" reducer. Its structure is quite complex and can be seen as an upgraded version of a planetary gearbox. It has two main parts: a planetary gear system, similar to a planetary gearbox; The second part is a cycloidal pinwheel mechanism. The input shaft drives the planetary gear system to rotate, and then further decelerates through the cycloidal pinwheel mechanism, ultimately outputting.

advantage

High precision: The transmission accuracy is very high, suitable for use in places that require high precision, such as robot joints.

High torque: able to withstand large amounts of torque and have strong load capacity.

High rigidity: The structure has good rigidity and is not easily deformed.

disadvantage

• Complex structure: Manufacturing and maintenance are both complex and costly.

• Larger volume: Compared to planetary gearboxes, the volume and weight will be larger.

3. Harmonic reducer

principle

The name of harmonic reducer sounds very artistic, but the principle is a bit like "twisting Fried Dough Twists". It mainly consists of three parts: wave generator, flexible wheel, and rigid wheel. The wave generator is an elliptical component that compresses a flexible wheel (a thin metal wheel) into an elliptical shape. The flexible wheel and the rigid wheel mesh together. When the wave generator rotates, the flexible wheel will deform like a "twist Fried Dough Twists", thus driving the rigid wheel to rotate. Through this deformation and meshing, deceleration is achieved.

advantage

Small size and light weight: With a simple structure and small size, it is particularly suitable for use in scenarios such as robot arms that require lightweighting.

High reduction ratio: It can achieve a large reduction ratio in a very small space.

High precision: With high transmission accuracy, precise control can be achieved.

disadvantage

• Limited load-bearing capacity: Flexible wheels are thin metal wheels that are prone to deformation, and their load-bearing capacity is not as good as planetary reducers and RV reducers.

• Limited lifespan: The flexible wheel may experience fatigue damage due to repeated deformation over time.

• High price: The manufacturing process is complex and the price is not cheap.

summarize

Planetary gearbox: suitable for general industrial applications, with high cost-effectiveness.

RV gearbox: suitable for high-precision and high load applications, such as robot joints.

Harmonic reducer: suitable for lightweight and high-precision applications, but attention should be paid to load-bearing capacity and lifespan.
