Which is better, planetary gearbox or gear gearbox?

Release Time：

2025-03-11

There are advantages and disadvantages between gear reducers and planetary reducers. The difference between planetary reducers and gear reducers lies in their different working principles, structures, and purposes.

Which is better, planetary gearbox or gear gearbox?
There are advantages and disadvantages between gear reducers and planetary reducers. The difference between planetary reducers and gear reducers lies in their different working principles, structures, and purposes.

1、 Different working principles

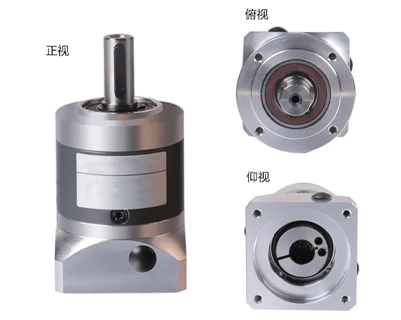

1. Planetary reducer: The working principle of a planetary reducer is that when the power on the input side drives the sun gear, it can drive the planetary gear to rotate and follow the trajectory of the inner gear ring to revolve around the center. The rotation of the planetary gear drives the output shaft connected to the tray to output power.

2. Gear reducer: The working principle of a gear reducer is to tighten it through a pulling nail mechanism, and there is a gear driven by external power at the center of the ring gear, which is independently closed transmission according to the module design principle.

2、 Different structures

1. Planetary reducer: The main transmission structure of planetary reducer is planetary gear, sun gear, and internal gear ring.

3、 Different uses

1. Planetary gearbox: Planetary gearboxes can be used as supporting components in industries such as lifting, excavation, transportation, and construction.

2. Gear reducer: Gear reducers are widely used in large mining, steel, chemical, port, environmental protection and other fields.

The advantages of planetary gearboxes are small size, light weight, high load-bearing capacity, long service life, smooth operation, low noise, high output torque, high speed ratio, high efficiency, and safe performance.

The disadvantage of planetary gearboxes is that their material accuracy and meticulous processing methods result in high cost and maintenance expenses.

The advantage of gear reducers is that they do not require cooling; Adopting maintenance free grease lubrication, it has a long lifespan and operates silently, with high output efficiency; The shell is made of alloy steel, which has high coaxiality and dynamic balance, and can be installed on various machining center machines.

The disadvantage of gear reducers is that their high rigidity and high-precision design result in high maintenance costs. The accuracy and torque are lower compared to planetary gearboxes.
