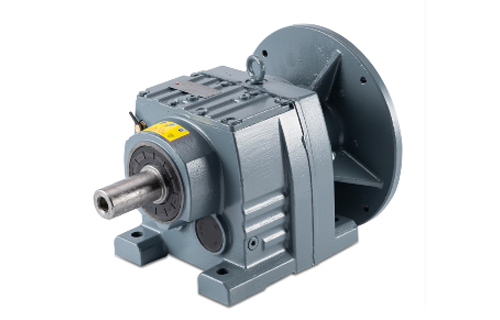

Introduction to R series reducers

Release Time：

2025-01-09

The R series helical gear reducer is widely used in the transmission fields of light and heavy industry machinery such as metallurgy and mining, petrochemicals, building materials machinery, railway vehicles, port ships, textile printing and dyeing, food packaging, paper printing, lifting and transportation, logistics loading and unloading, agricultural, animal husbandry and fishery machinery, light industry leather, etc.

1、 Basic parameters

Transmission speed ratio: 5~229.71

Protection level: ≥ IP44

Allowable torque: 2550N. m

Input power: 0.55-160kW

Gearbox specification numbers: 17, 27, 37, 47, 57, 67, 77, 87, 97, 107, 137, 147, 167

2、 Performance characteristics

1. The R series coaxial helical gear reducer is manufactured in accordance with international technical requirements and has high technological content;

2. Space saving, reliable and durable, high overload capacity, power up to 132KW;

3. Low energy consumption, good performance, reducer efficiency of over 95%;

4. Low vibration, low noise, and high energy efficiency;

5. Using forged steel material, steel cast iron box body, and high-frequency heat treatment on the gear surface;

6. After precision machining to ensure shaft parallelism and positioning bearing requirements, the reducer of the helical gear transmission assembly is equipped with various motors to form an electromechanical integration, ensuring the quality of the reducer motor product.

3、 Scope of use
