Right angle reduction motor
1. When the reducer shaft is used with the mechanical connection of sprocket, conveyor belt and gear, the output shaft allowable O.H.L should be considered. 2. The list of allowable O.H.L value load position in the (solid shaft: the middle of the output shaft; hollow shaft: at 20mm from the end of the shaft) 3.15 than a load inertia can not be greater than 2 times the allowable shaft rotation 4.* Marked for restricted models, please pay special attention to the allowable value in the table of allowable torque.
Keywords
Motor / Reducer
Category
Product Brochure
Product Details
1. When the reducer shaft is used with the mechanical connection of sprocket, conveyor belt and gear, the output shaft allowable O.H.L should be considered.

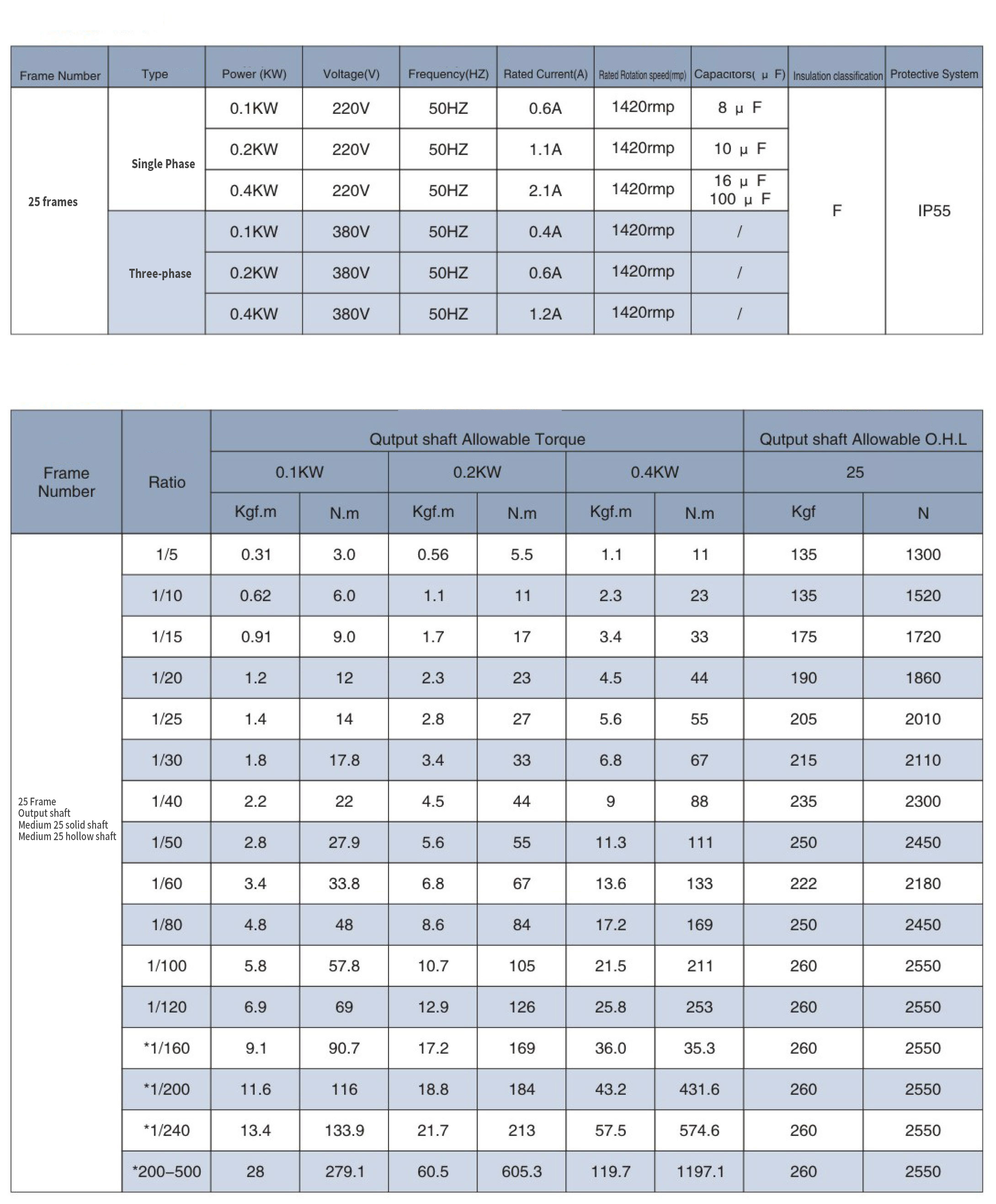

2. The list of allowable O.H.L value load position in the (solid shaft: the middle of the output shaft; hollow shaft: at 20mm from the end of the shaft)
3.15 than a load inertia can not be greater than 2 times the allowable shaft rotation
4.* Marked for restricted models, please pay special attention to the allowable value in the table of allowable torque.
